Unity little toy shaders

Here’s a small but growing collection of little Unity toys with more or less typical mathematical tricks implemented in a fragment shader. What’s impressive is, as often happens in maths, the simplicity of most formulas when implemented. I’ve always found coding things that have a visual output a really good way of understanding maths. I adapted these old snippets I made in Processing to ShaderLab/CG. I intentionally shared them in their most basic form to leave room to creativity.

How much I love this stuff I just can’t explain.

To use these toys in Unity, you need to:

Create a shader asset.
Create a material and assign the new shader to it (this is done automagically if you right click on the shader and create a Material from there).
Create a quad in your scene.
Assign the material to the quad.
Position the camera so the quad faces it (or viceversa) and fills the camera frustum.

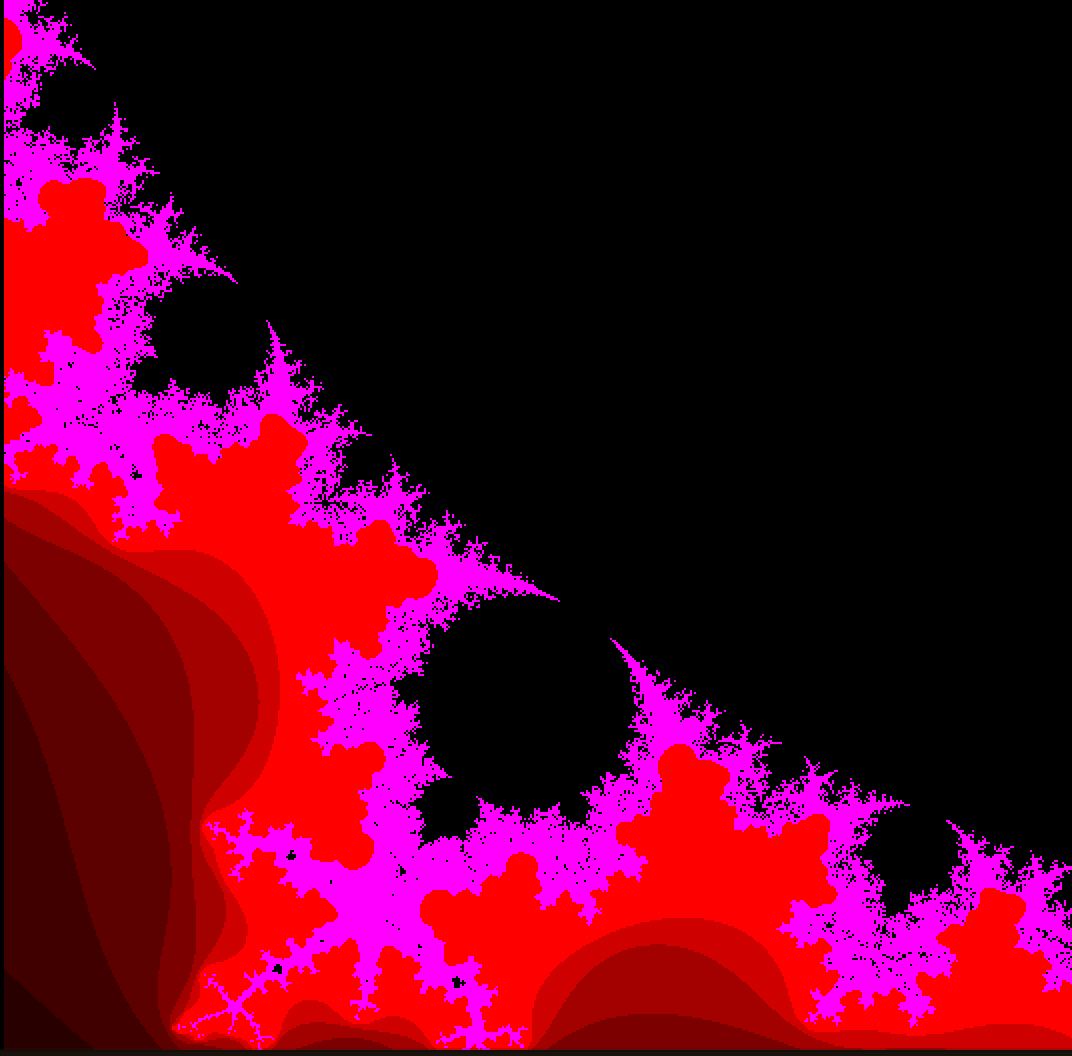

#1: Mandelbrot Julia Set

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55


Shader "Unlit/Mandelbrot Julia"
{
	Properties
	{
		_MainTex ("Texture", 2D) = "white" {} // not used but can be used for colors
	}
	SubShader
	{
		Tags { "RenderType"="Opaque" }
		LOD 100

		Pass
		{
			CGPROGRAM
			#pragma vertex vert_img
			#pragma fragment frag
			// make fog work
			#pragma multi_compile_fog

			#include "UnityCG.cginc"

			sampler2D _MainTex;
			float4 _MainTex_ST;

			fixed4 frag (v2f_img i) : SV_Target
			{
				// fixed4 col = tex2D(_MainTex, i.uv);
				float2 ncuv = i.uv * 2 - 1;

				//////////////////
				// MANDELBROT Toy
				//////////////////
				float2 z = float2(0, 0);
				float2 c = ncuv * 0.2 + 0.5;
				float2 zc = z + c;
				for (int M = 0; true; M++)
				{
					float sq = zc.x*zc.x + zc.y*zc.y;
					if (sq > 4)
					{
						return fixed4(float(M*M)/100, -float(M)/200, float(M/20), 1);
					}
					else
					{
						zc = float2(zc.x*zc.x - zc.y*zc.y, 2 * zc.x*zc.y) - c;
					}
					if(M >= 100)
						return fixed4(0,0,0,1);
				}
				return fixed4(0,0,0,1);
			}
			ENDCG
		}
	}
}

#2: 3n plus 1 rule

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67


Shader "Unlit/_3plus1B"
{
	Properties
	{
		//_MainTex ("Texture", 2D) = "white" {}
		_Scale ("Scale", float) = 100
		_Max ("Max iterations", int) = 180
		_Radial ("Radial", Range(0,1)) = 0
		_ConvColor ("Convergence Color", Color) = (1,1,1,1)
		_DivColor ("Divergence Color", Color) = (1,1,1,1)
		_DivCap ("Divergence Interval", float) = 10000.0
	}
	SubShader
	{
		Tags { "RenderType"="Opaque" }
		LOD 100

		Pass
		{
			CGPROGRAM

			#include "UnityCG.cginc"

			#pragma vertex vert_img
			#pragma fragment frag
			// make fog work
			#pragma multi_compile_fog

			float _Scale;
			float _Max;
			float _Radial;
			fixed4 _ConvColor;
			fixed4 _DivColor;
			float _DivCap;

			fixed4 frag (v2f_img i) : SV_Target
			{
				float2 ncuv = (i.uv - 0.5) * 2 * _Scale;

				float Res = 1;// - abs(_CosTime.z)*256;// + abs(10*_SinTime.x);
				//float T = abs(ncuv.x*Res*ncuv.y*Res);
				//float T = abs(_SinTime.y*(elevation*bearing)+rSq);
				float rSq = ncuv.x*ncuv.x+ncuv.y*ncuv.y;
				float T = (1.0 - _Radial) * abs((ncuv.x)*(ncuv.y)) + _Radial * rSq;

				for (int t = 0; t < _Max; t++)
				{
					if (floor(T) % 2 == 0)
					{
						T = T / 2;
					}
					else
					{
						T = T * 3 + 1;
					}
						if (T == 1)
					{
						return fixed4(t/_Max, t/_Max, t/_Max, 1) * _ConvColor;
					}
				}
				float v = min(T/_DivCap,1);
				return fixed4(v,v,v,1) * _DivColor;//fixed4(T, T/_Fact1*0.2, T/_Fact1*0.1, 1);
			}
			ENDCG
		}
	}
}
